14mm - 16mm Forged D Ring Forged Delta Ring Galvanized Alloy Steel

Brand Name : LKY

Model Number : Forged Delta Ring

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Galvanized Alloy Steel Forged Delta Ring

Material : Forged alloy steel

Surface : Hot dip galvanized, Color painted

Size : 14mm-16mm

Packing : Cartong + Pallet

WLL : 4500lbs-5000lbs

Contact Now

Galvanized Alloy Steel Forged Delta Ring

Alloy steel forged delta ring is made by high quality alloy steel with hot dip galvanizing on the surface. All the procedures from raw material purchase to delivery will be strictly examed. The advanced technical design crafts and equipments are completely adopted. The essential working procedures are controlled completely by the computers.

Product Details:

1. Item: Alloy steel forged delta ring

2. Grade: G80

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 4500lbs-5000lbs

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 14mm-16mm

10. Special specifications and marks can be made according to customers requirement

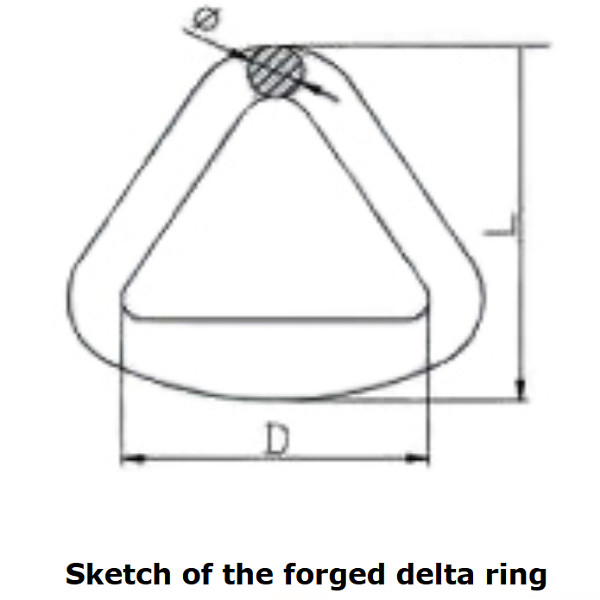

Specification:

WLL(lbs)	Weight(kg)	B.L(lbs)	D(mm)	Φ(mm)	L(mm)
4500	0.38	18000	79	14	96
5000	0.66	20000	110	16	118.5
